How to Install and Use Gremlin in a Docker Container

Last Updated: June 22, 2021

Introduction

Gremlin is a simple, safe and secure way to improve the resilience of your systems by using Chaos Engineering to identify and fix failure modes. You can use Gremlin with Docker to run chaos experiments on Docker containers, and run the Gremlin agent within a Docker container to run experiments on other containers or on the host itself.

In this tutorial, we'll show you how to do both. This tutorial will provide a walkthrough of the following:

How to install Docker
How to create an Nginx Docker container to attack using Gremlin
How to install Gremlin in a Docker container
How to create a CPU Attack from a Gremlin Container against the host
How to create a CPU Attack from a Gremlin Container against a Nginx Docker container

If you want to run the Gremlin agent on a host to attack Docker containers, view the guide on How to Install and Use Gremlin with Docker on Ubuntu 18.04.

Prerequisites

Before you begin this tutorial, you'll need the following:

A server with Ubuntu 18.04 or later.
A Gremlin account (sign up here)

Step 1 - Installing Docker

In this step, you'll install Docker.

Add official Docker GPG key:

bash

1curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -

Use the following command to set up the stable repository.

bash

1sudo add-apt-repository "deb [arch=amd64] https://download.docker.com/linux/ubuntu $(lsb_release -cs) stable"

Update the apt package index:

bash

1sudo apt-get update

Make sure you are about to install from the Docker repo instead of the default Ubuntu 16.04 repo:

bash

1apt-cache policy docker-ce

Install the latest version of Docker CE:

bash

1sudo apt-get install docker-ce docker-ce-cli containerd.io

Docker should now be installed, the daemon started, and the process enabled to start on boot. Check that it is running:

bash

1sudo systemctl status docker

When running commands in Docker, you'll need to use sudo or log in as root. To run Docker commands as a non-root user, add yourself to the Docker usergroup by running this command, replacing tammy with your username. Note that this comes with some security implications, which you can read here.

bash

1sudo usermod -aG docker tammy

Step 2 (Optional) - Create an htop container for monitoring

htop is an interactive process viewer for Unix. This step isn't a requirement for installing Gremlin in Docker, but we'll use htop in this tutorial to observe the impact of our attacks. You can skip this step completely, or use another monitoring tool of your choice.

First create the Dockerfile for your htop container (we use vim, but any text editor will work):

bash

1vim Dockerfile

Add the following to the Dockerfile:

docker

1FROM alpine:latest
2RUN apk add --update htop && rm -rf /var/cache/apk/*
3ENTRYPOINT ["htop"]

Build the Dockerfile and tag the image:

bash

1sudo docker build -t htop .

Now, start an htop container. Using --pid=host grants htop access to the host's process space so that htop can monitor processes running on the host:

bash

1sudo docker run -it --rm --pid=host htop

To exit htop, use the q key.

Next we will create an Nginx container and monitor the new container directly by joining the container pid namespace.

Step 3: Create an Nginx Docker container to be used for Gremlin Attacks

Nginx is a popular web server that we will use as the target of our chaos experiments. First we will create a directory for the HTML page we will serve using Nginx:

bash

1mkdir -p ~/docker-nginx/html
2cd ~/docker-nginx/html

Create a simple HTML page named index.html:

bash

1vim index.html

Paste in the content shown below:

html

1<html>
2  <head>
3    <title>Docker nginx tutorial</title>
4    <link
5      rel="stylesheet"
6      href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/css/bootstrap.min.css"
7      integrity="sha384-Gn5384xqQ1aoWXA+058RXPxPg6fy4IWvTNh0E263XmFcJlSAwiGgFAW/dAiS6JXm"
8      crossorigin="anonymous"
9    />
10  </head>
11  <body>
12    <div class="container">
13      <h1>Hello it is your container speaking</h1>
14      <p>This nginx page was created by your Docker container.</p>
15      <p>Now it's time to create a Gremlin attack.</p>
16    </div>
17  </body>
18</html>

Create a container using the Nginx Docker image (note that if you aren't a member of the docker group, you'll need to add sudo to the start of each command):

bash

1docker run -l service=nginx --name docker-nginx -p 80:80 -d -v ~/docker-nginx/html:/usr/share/nginx/html nginx

View the docker-nginx container

bash

1docker ps -a

You will see the following:

bash

1CONTAINER ID        IMAGE               COMMAND                       CREATED                 STATUS                   PORTS                         NAMES
2352609a67e95        nginx               "nginx -g 'daemon off..."        33 seconds ago          Up 32 seconds       0.0.0.0:80->80/tcp              docker-nginx

Step 4 - Installing Gremlin in a Docker container

After you have created your Gremlin account (sign up here) you will need to find your Gremlin credentials. Login to the Gremlin web app using your Company name and sign-in credentials. These were emailed to you when you signed up for Gremlin.

Navigate to Team Settings by clicking on the user icon in the top right (next to the halt button), then clicking Team Settings. Select the Configuration tab. Here, you'll see your Team ID and Secret Key. Store both of these as environment variables by running the following commands (replacing YOUR_TEAM_ID and YOUR_SECRET_KEY respectively):

bash

1export GREMLIN_TEAM_ID=YOUR_TEAM_ID

bash

1export GREMLIN_TEAM_SECRET=YOUR_SECRET_KEY

Gremlin uses sidecars to run attacks. By default, these have no user namespace. However, when Docker is configured to remap container users to the host, Gremlin sidecars must be launched in the host's user namespace to successfully execute attacks. To see if your Docker instance is configured to remap users, check the following:

bash

1/etc/docker/daemon.json

To tell Gremlin to launch sidecars with the host's user namespace, create the following environment variable:

bash

1export GREMLIN_BYPASS_USERNS_REMAP=1

Next, run the Gremlin Docker container. Use docker run to pull the official Gremlin Docker image and start the Gremlin agent:

bash

1docker run -d --net=host \
2    --cap-add=NET_ADMIN --cap-add=SYS_BOOT --cap-add=SYS_TIME \
3    --cap-add=KILL \
4    --pid=host \
5    -v $PWD/var/lib/gremlin:/var/lib/gremlin \
6    -v $PWD/var/log/gremlin:/var/log/gremlin \
7    -v /var/run/docker.sock:/var/run/docker.sock \
8    -e GREMLIN_TEAM_ID="$GREMLIN_TEAM_ID" \
9    -e GREMLIN_TEAM_SECRET="$GREMLIN_TEAM_SECRET" \
10    gremlin/gremlin daemon

If you have set GREMLIN_BYPASS_USERNS_REMAP environment variable above, you need to run the Gremlin daemon by setting that environment variable like so:

bash

1docker run -d --net=host \
2    --cap-add=NET_ADMIN --cap-add=SYS_BOOT --cap-add=SYS_TIME \
3    --cap-add=KILL \
4    --pid=host \
5    -v $PWD/var/lib/gremlin:/var/lib/gremlin \
6    -v $PWD/var/log/gremlin:/var/log/gremlin \
7    -v /var/run/docker.sock:/var/run/docker.sock \
8    -e GREMLIN_TEAM_ID="$GREMLIN_TEAM_ID" \
9    -e GREMLIN_TEAM_SECRET="$GREMLIN_TEAM_SECRET" \
10    -e GREMLIN_BYPASS_USERNS_REMAP="$GREMLIN_BYPASS_USERNS_REMAP" \
11    gremlin/gremlin daemon

For additional advanced settings, please visit our Gremlin Docs: Advanced Configuration

Use docker ps to see all running Docker containers:

bash

1docker ps

1CONTAINER ID        IMAGE                COMMAND                  CREATED             STATUS              PORTS                    NAMES
2b281e749ac33        gremlin/gremlin      "/entrypoint.sh daem…"   5 seconds ago       Up 4 seconds                                 relaxed_heisenberg

Now that everything's up and running, let's open an interactive shell on the Gremlin container and use the Gremlin CLI. Run the following command, replacing b281e749ac33 with the ID or name of your Gremlin container:

bash

1docker exec -it b281e749ac33 /bin/sh

From within the container, check out the available attack types:

1gremlin help attack-container

1Usage: gremlin attack-container CONTAINER TYPE [type-specific-options]
2Type "gremlin help attack-container TYPE" for more details:
3
4  blackhole # An attack which drops all matching network traffic
5  cpu # An attack which consumes CPU resources
6  io # An attack which consumes IO resources
7  latency # An attack which adds latency to all matching network traffic
8  memory # An attack which consumes memory
9  packet_loss # An attack which introduces packet loss to all matching network traffic
10  shutdown # An attack which forces the target to shutdown
11  dns # An attack which blocks access to DNS servers
12  time_travel # An attack which changes the system time.
13  disk # An attack which consumes disk resources
14  process_killer # An attack which kills the specified process

Exit the container:

1exit

Step 5 - How to create a CPU Attack from a Gremlin Container against the host using the Gremlin CLI

We will use the Gremlin CLI attack command to create a CPU attack. This attack will consume CPU using the default settings of 1 core for 60 seconds.

We could use our running Gremlin container to run the attack, but for this example, we'll actually create a new container that will stop once the attack is finished. Run the following to create the CPU attack:

bash

1docker run -d \
2    --net=host \
3    --pid=host \
4    --cap-add=NET_ADMIN \
5    --cap-add=SYS_BOOT \
6    --cap-add=SYS_TIME \
7    --cap-add=KILL \
8    -e GREMLIN_TEAM_ID="${GREMLIN_TEAM_ID}" \
9    -e GREMLIN_TEAM_SECRET="${GREMLIN_TEAM_SECRET}" \
10    -v /var/run/docker.sock:/var/run/docker.sock \
11    -v /var/log/gremlin:/var/log/gremlin \
12    -v /var/lib/gremlin:/var/lib/gremlin \
13    gremlin/gremlin attack cpu

View the progress of the attack using the htop container you created earlier:

bash

1docker run -it --rm --pid=host htop

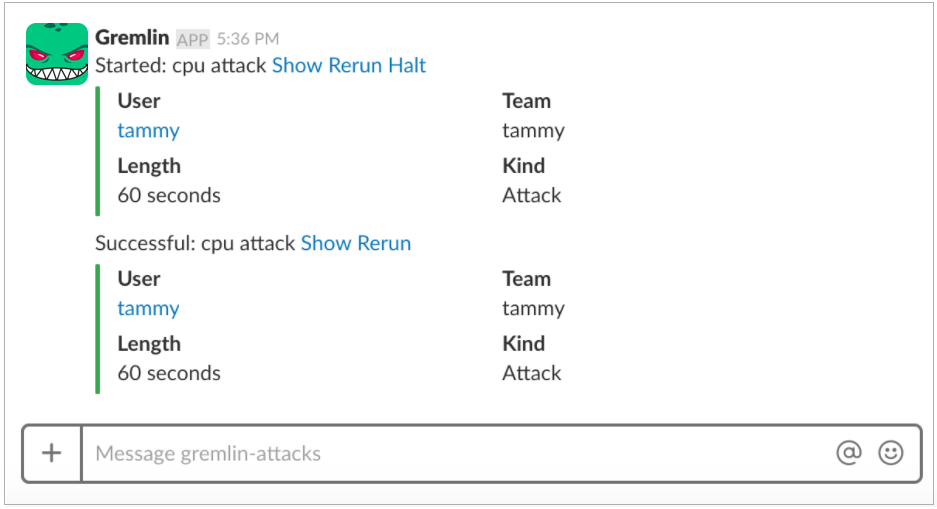

If you have setup the Gremlin Slack integration, it will also notify your team via Slack:

slackcpu

Step 6 - How to create a CPU Attack from a Gremlin container against the Nginx Docker container using the Gremlin CLI

Gremlin has an attack-container argument that can be used to attack containers by their container ID or name. We will use the Gremlin CLI attack-container argument to create a CPU attack. This attack will consume CPU using the default settings of 1 core for 60 seconds.

Before the attack use htop to monitor the docker-nginx container, replace f291a040a6aa with your Nginx container ID:

bash

1docker run -it --rm --pid=container:f291a040a6aa htop

You will see the following:

bash

11  [                                                                           0.0%]   Tasks: 3, 0 thr; 1 running
22  [|                                                                          0.7%]   Load average: 0.72 0.41 0.21
3Mem[|||||||||||||||||||||||||                                            141M/3.86G]   Uptime: 00:30:34
4Swp[                                                                          0K/0K]
5
6PID USER      PRI  NI  VIRT   RES   SHR S CPU% MEM%   TIME+  Command
7 47 root       20   0  4488  2236   932 R  0.0  0.1  0:00.07 htop
8  1 root       20   0 32428  5180  4504 S  0.0  0.1  0:00.03 nginx: master process nginx -g daemon off;
9  8 101        20   0 32900  2476  1448 S  0.0  0.1  0:00.00 nginx: worker process

Run the following to create the CPU container attack against a container. Replacef291a040a6aa with your container ID:

bash

1docker run -d -it \
2    --cap-add=NET_ADMIN \
3    -e GREMLIN_TEAM_ID="${GREMLIN_TEAM_ID}" \
4    -e GREMLIN_TEAM_SECRET="${GREMLIN_TEAM_SECRET}" \
5    -v /var/run/docker.sock:/var/run/docker.sock \
6    gremlin/gremlin attack-container f291a040a6aa cpu

View the progress of the attack using the htop container you created earlier:

bash

1docker run -it --rm --pid=container:f291a040a6aa htop

You will see the following result:

bash

11  [|                                                                            0.7%]   Tasks: 4, 1 thr; 2 running
22  [|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||          100.0%]   Load average: 0.30 0.33 0.19
3Mem[|||||||||||||||||||||||||                                              163M/3.86G]   Uptime: 00:32:09
4Swp[                                                                            0K/0K]
5
6PID USER      PRI  NI  VIRT   RES   SHR S CPU% MEM%   TIME+  Command
7 51 root       20   0 15456 13696  4112 S 99.0  0.3  0:11.25 gremlin attack cpu
8 70 root       20   0  4488  1988   948 R  0.0  0.0  0:00.04 htop
9  1 root       20   0 32428  5180  4504 S  0.0  0.1  0:00.03 nginx: master process nginx -g daemon off;
10  8 101        20   0 32900  2476  1448 S  0.0  0.1  0:00.00 nginx: worker process

After 60 seconds, the attack will automatically halt and CPU usage will drop to normal.

Example: Create a blackhole attack on an Nginx Docker container

Next, we'll run a blackhole attack on the Nginx container. A blackhole attack drops all network traffic to and from a container, making it appear offline. First, run the attack (make sure to replace the container ID!):

bash

1docker run -it \
2    --cap-add=NET_ADMIN \
3    -e GREMLIN_TEAM_ID="${GREMLIN_TEAM_ID}" \
4    -e GREMLIN_TEAM_SECRET="${GREMLIN_TEAM_SECRET}" \
5    -v /var/run/docker.sock:/var/run/docker.sock \
6    gremlin/gremlin attack-container f291a040a6aa blackhole --ingress_port 80

Now, if you try to access the Nginx page, the request will time out:

bash

1curl localhost

You can view the progress of the attack using the htop container you created earlier:

bash

1sudo docker run -d -it --rm --pid=container:f291a040a6aa htop

You will see the following result:

bash

1Attacking container 'f291a040a6aa' with command ["attack", "blackhole", "-h", "google.com"] ...
2Spawning sidecar container 'gremlin-f291a040a6aa' based on 'gremlin/gremlin:latest' for attack ...
3Setting up blackhole gremlin with guid '0df1ccf5-0801-11e8-9acf-0242fe3ba0bc' for 60 seconds
4Setup successfully completed
5Running blackhole gremlin with guid '0df1ccf5-0801-11e8-9acf-0242fe3ba0bc' for 60 seconds
6Dropping all egress traffic (to local port(s) 80)
7Dropping all ingress traffic (from local port(s) 80)
8Reverting impact!

Running attacks from the Gremlin web app

Now that the Gremlin container is running in your Docker environment, you can use the Gremlin web app to run attacks on the host, or other Docker containers running on the host.

To start an attack from the web app, log in using your Gremlin credentials and select Attacks from the left panel. Then, select New Attack to get the following screen:

If you have multiple targets, you can target multiple targets for the attack by using tags or by finding the exact target. For our example, we'll use Exact:

Next we'll select an attack to run against the container. Like our CLI example, we'll use the CPU attack. For more information about all our attacks, please visit Attacks.

Once the attacks begins, you'll be taken to the following screen. You can follow the progress of attack from this page. The Stage under Details will state the current progress of the attack. If for some reason you need to stop the attack, the Halt button will stop the attack.

Conclusion

You've installed Gremlin in a Docker container and validated that Gremlin works by running the "Hello, World!" of Chaos Engineering experiments: the CPU resource attack. You have run a CPU resource attack from the Gremlin Docker container against the host. You have also run a CPU resource attack and blackhole attack from the Gremlin Docker container against an Nginx Docker container. You now possess tools that make it possible for you to explore additional Gremlin Attacks including attacks that impact State and Network.

The Gremlin documentation is a great resource and reference for using Gremlin to do Chaos Engineering. You can also explore the Gremlin Community for more tutorials, information on how to use Chaos Engineering with your application infrastructure, and advice from other Chaos Engineers on how to make your systems more reliable.

Start

How to run an experiment on AWS Lambda using Failure Flags and Node.js

Introduction In this tutorial, we'll show you how to run a Chaos Engineering experiment on a serverless application…

Andre Newman

Sr. Reliability Specialist

Start

How to run multiple experiments in parallel using Gremlin

Introduction Gremlin lets you run multiple Chaos Engineering experiments in a single workflow called a Scenario…

Andre Newman

Sr. Reliability Specialist

Start

How to use your Gremlin reliability score in Jenkins to ensure reliable releases

Introduction Adding Gremlin to your CI/CD pipeline is a key step in automating your reliability efforts. We previously…

Andre Newman

Sr. Reliability Specialist

Avoid downtime. Use Gremlin to turn failure into resilience.

Gremlin empowers you to proactively root out failure before it causes downtime. See how you can harness chaos to build resilient systems by requesting a demo of Gremlin.

Get started

Introduction

Prerequisites

Step 1 - Installing Docker

Step 2 (Optional) - Create an htop container for monitoring

Step 3: Create an Nginx Docker container to be used for Gremlin Attacks

Step 4 - Installing Gremlin in a Docker container

Step 5 - How to create a CPU Attack from a Gremlin Container against the host using the Gremlin CLI

Step 6 - How to create a CPU Attack from a Gremlin container against the Nginx Docker container using the Gremlin CLI

Example: Create a blackhole attack on an Nginx Docker container

Running attacks from the Gremlin web app

Conclusion

Related

Avoid downtime. Use Gremlin to turn failure into resilience.
